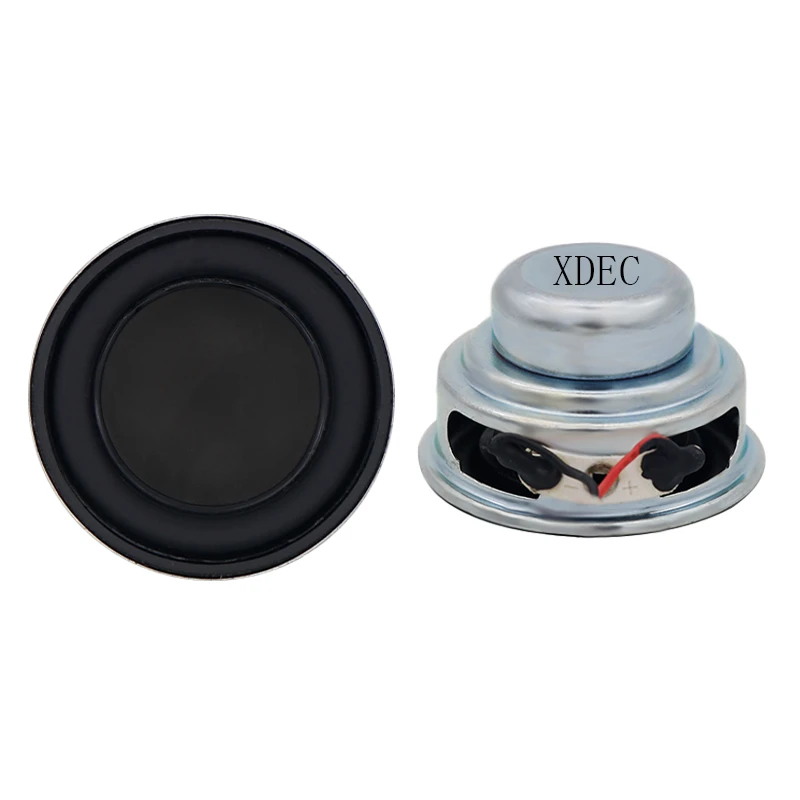

XDEC 1.5 Nti Fullrange 40mm 8ohm 5w Neodymium Speaker Tsav
TSIS MUAJ. XDEC-40Y08T19ND17
XDEC Factory Supply 1.5 Inch Round Full Range Speaker Driver, tag nrho qhov ntev40 × 23.5 hli, ua nrog 16-core suab coil tsim. txais yuavN35 qib dual neodymium hlau nplaum, uas muab lub zog sib nqus zog dua li cov neeg hais lus hlau nplaum zoo tib yam. Nws muab kev ua tau zoo tag nrho ntawm acoustic, suab nrov, muaj zog ntses bass thaj tsam thiab ntau lub suab sib luag dua li lwm tus neeg hais lus hauv tib pawg.
Qhov no puag ncig puv -ntau tus hais lus nta 8Ω impedance, 5W ntsuas lub zog thiab 6W siab tshaj lub zog. Lub resonant zaus Fo yog 165Hz, nrog cov lus teb muaj txiaj ntsig zoo npog 165Hz txog 20KHz, thiab rhiab heev txog 79dB @ 1W / 1M.
Nws siv lub dual - txheej txheej diaphragm qauv rau qhov ua tau zoo tag nrho - ntau lub suab. Cov txheej hauv qab yog ua los ntawm qib siab - cov ntaub ntawv ntoo pulp, uas ua kom muaj suab nrov zoo, rov tsim dua tshiab, huv si thiab meej tib neeg lub suab, thiab kho zoo meej rau lub suab thiab suab paj nruag. Sab saum toj txheej yog tsim los nrog concave PET polymer cov khoom siv yas, hloov cov plua plav tsoos tsho thiab kev sib xyaw nrog lub khob hliav qab.
Nrog hwm dub PET sib xyaw saum npoo kev kho ntawm lub diaphragm, tus neeg hais lus no ua tiav cov dej tsis zoo, kev sib ntsibIPX4 rau IPX7 waterproof yuav tsum.
Compact thiab exquisite nyob rau hauv qhov loj, nws nthuav tawm tag nrho -ntau lub suab nrog impressive tob bass, ua tau zoo heev nyob rau hauv tsawg zaus, nruab nrab zaus thiab siab zaus.
Dav haum rau sab nraum zoov lub suab, chav dej hais lus, pleev daim iav hais lus, mini players, AI neeg hlau, cov menyuam kawm ntawv thaum ntxov, cov neeg hlau pw tsaug zog, cov cuab yeej siv suab nrov, lub suab nrov dawb, Bluetooth hais lus, cov neeg hais lus ntse thiab cov khoom siv suab ntau dua.
.

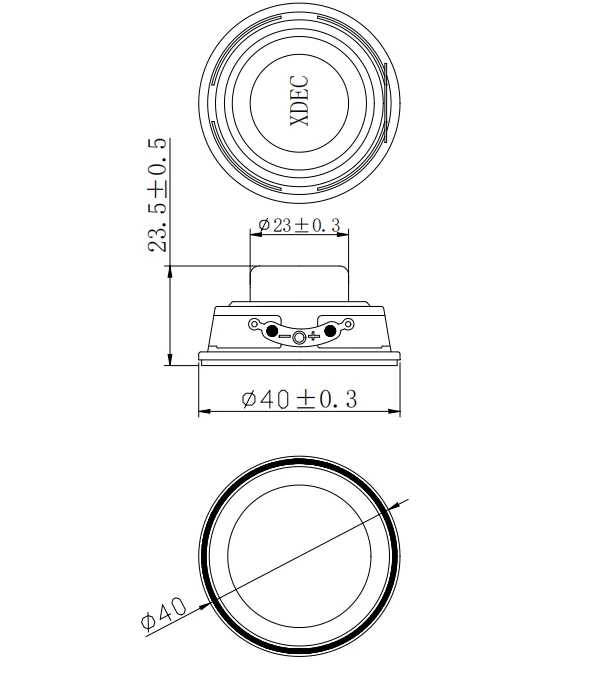

Dimension Daim duab
40mm 8ohm 5w Neodymium Speaker Driver Dimension Diagram Daim duab loj no muab cov ntsiab lus dav dav ntawm cov yam ntxwv ntawm lub cev thiab cov lus qhia tshwj xeeb ntawm tus neeg tsav tsheb thetraspeaker hauv tsev, pab hauv nws txoj kev txhim kho thiab kev koom ua ke rau hauv Audio Device designs.
Speaker Frequency Response Curve
Lub 40mm 8ohm 5w Neodymium Speaker Driver zaus teb nkhaus pab peb nkag siab tus neeg hais lus kev ua tau zoo thoob plaws ntau zaus, suav nrog treble, nruab nrab, thiab ntses bass thaj tsam. Kev hloov pauv ntawm qhov nkhaus qhia tau hais tias lub suab zoo nyob rau hauv qhov tshwj xeeb. Qhov nkhaus nkhaus qhia tias muaj qhov sib npaug ntau dua, thaum qhov kev hloov pauv loj dua qhia qhov hloov pauv ntawm qee zaus.
Khoom Specifications
|
TSIS MUAJ. |
Yam khoom |
Specification |
Qhov xwm txheej |
|
|
1 |
Dim |
Φ40*23.5H mm |
||
|
2 |
Anomia Impedance |
8 ± 15% OHM |
Ntawm 1.0KHz / 1.0V |
|
|
3 |
Input zog |
Qhov ntsuas: 5W / Max: 6W |
6.32V 6.89V |
|
|
4 |
Resonance zaus |
165 ± 20% Hz |
Hauv 1.0V |
|
|
5 |
S．P．L． |
79dB (1W / 1M) |
Ntawm 0.6k / 0.8K / 1.0K / 1.2KHz (Nruab nrab)
|
|
|
6 |
Ntau zaus Ntau yam |
F0~15K
|
Tso zis SPL. -10dB
|
|
|
7 |
Distortion |
10% Max |
Ntawm 1.0KHz 0.1W / 0.1M
|
|
|
8 |
Buzz & Rattle |
Tsis yog audible sine yoj ntawm 6.32V / F0~ 5 KHz.
|
||
|
9 |
Polarity |
Diaphragm yuav txav mus tom ntej. |
||
|
10 |
Load tes |
Yuav tsum yog qhov qub tom qab kuaj kev kuaj: dawb suab nrov 24 teev. |
||
|
11 |
HIG TEMP test |
Tom qab tau nyob hauv chav sim rau 48 teev ntawm qhov xwm txheej ntawm +60℃20 ~ 25%RH thiab khaws 2 teev |
||
Cov khoom siv
Intercom
Muaj kev paub siv lead ua-kev sib txuas lus meej nrog peb 40mm 8ohm 5w Neodymium Speaker Driver. Peb qhov kev ua tau zoo- tus neeg tsav tsheb engineered ua kom lub suab zoo tshaj plaws rau cov tshuab intercom, khaws txhua yam thiab muab lub suab meej thiab txhim khu kev qha rau kev sib txuas lus seamless.
Cov cuab yeej kawm
Kawm paub meej thiab meej siv peb 40mm 8ohm 5w Neodymium Speaker Driver. Peb lub siab - tus neeg tsav tsheb muaj kev ncaj ncees rov tsim cov suab paj nruag nrog qhov tseeb, muab kev paub zoo thiab mloog zoo rau cov cuab yeej kev kawm thiab txhim kho txoj kev kawm.
Nyeem Ntawv Pen
Tshawb nrhiav kev xyiv fab ntawm kev nyeem ntawv nrog peb 40mm 8ohm 5w Neodymium Speaker Driver. Peb tus neeg tsav tsheb compact thiab ua tau zoo coj cov ntawv nyeem - mus rau - hais lus thev naus laus zis rau lub neej, muab qhov tseeb thiab ntuj tsim - lub suab tawm suab uas txhim kho kev nyeem ntawv.
Hluav taws xob cov khoom ua si
Ua si nrog kev zoo siab thiab pom tseeb siv peb 40mm 8ohm 5w Neodymium Speaker Driver. Peb tus neeg tsav tsheb ruaj khov thiab txhim khu kev qha coj kev ua si thiab kev sib tham sib tham hauv lub neej, muab qhov chaw nplua nuj thiab koom nrog lub suab uas ua rau menyuam yaus hauv lawv qhov kev ua si.
Tuam txhab Taw Qhia
Founded hauv 2009, peb lub tuam txhab yog ib tug zoo-paub domestic electroacoustic siab-tech enterprise integrating R & D, ntau lawm thiab muag khoom. Peb cov khoom muaj xws li: hais lus tsav tsheb, lub suab receiver, microphones thiab lwm yam khoom siv electroacoustic.
Pab neeg tshaj lij
Nrog rau peb lub xeev - ntawm -- cov chaw kos duab thiab pab neeg ua haujlwm, peb muab cov kev pabcuam kev cai coj mus kuaj kom tau raws li koj qhov kev xav tau tshwj xeeb.
24-teev kev sib tham hauv online
Peb cov kws tshaj lij muaj peev xwm muaj 24/7 los muab kev txhawb nqa thiab ua kom muaj kev paub zoo thoob plaws hauv txoj haujlwm.
5000m²
Factory cheeb tsam
150+
Cov neeg ua haujlwm hauv lub Hoobkas
100+
Cov khoom siv precision
100%
Cov khoom tsim nyog tus nqi
Vim li cas thiaj xaiv peb?
15 xyooKev Paub Txog Kev Lag Luam
Nrog rau ntau tshaj 15 xyoo hauv kev lag luam, peb coj cov kev txawj ntse hauv cov khoom siv hluav taws xob thiab cov khoom hais lus, ua kom cov khoom zoo tshaj -notch zoo thiab kev ntseeg siab.
Cov neeg ua haujlwm tshwj xeeb
Peb pab neeg ntawm ntau tshaj 200 tus neeg ua haujlwm txawj ntse tau cog lus rau kev ua tau zoo, siv lawv cov kev txawj ntse kom xa cov kev daws teeb meem tshiab thiab kev pabcuam tshwj xeeb rau cov neeg siv khoom.
Xeev- ntawm--Art Facilities
Spanning 5000m², peb cov chaw tsim khoom niaj hnub no tau nruab nrog kev txiav- thev naus laus zis, ua kom muaj txiaj ntsig zoo thiab kev tswj hwm nruj.
Customized Solutions
Peb tshwj xeeb hauv kev tsim cov khoom siv hluav taws xob thiab cov khoom siv hais lus, muab cov peev txheej tsim tau yooj yim kom tau raws li cov neeg siv khoom xav tau ntau yam nrog precision thiab ua haujlwm zoo.
Peb Cov Txheej Txheem Kev Pabcuam
Peb tus xovtooj dawb pabcuam dawb:+8618818562515
Ua ntej-Sales Consultancy
1
>>
Kev lees paub ntawm kev txiav txim
2
>>
Ntau lawm
3
>>
Ntau -Channel Shipping
4
>>
Kev lees paub ntawm kev txais
5
>>
Tom qab -muag Services
6
Kev hwm thiab kev tsim nyog
Cov ntawv pov thawj raug cai, kev pabcuam tomqab muag.
Cov lus nug nquag
Mini Speaker Driver yog dab tsi?
+
-
Mini Speaker Driver yog ib hom kev hais lus uas siv cov zaj duab xis nyias, hloov tau yooj yim raws li lub diaphragm los tsim cov suab nrov. Nws yog lub npe hu rau nws lub siab - zoo tsim suab, durability, thiab compact tsim, ua rau nws haum rau ntau yam kev siv, nrog rau cov khoom siv suab, intercom systems, thiab cov khoom ua si.
Kuv puas tuaj yeem muaj cov qauv ntawm Cov Neeg Hais Lus Tsav Tsheb rau kev sim ua ntej?
+
-
Yog lawm. koj yeej ua tau. Peb tuaj yeem xa cov qauv dawb rau koj thiab koj tsuas yog yuav tsum them tus nqi xa khoom.
Tus Neeg Hais Lus Tsav Tsheb yuav kav ntev npaum li cas?
+
-
Lub neej ntev ntawm Tus Neeg Hais Lus Tsav Tsheb nyob ntawm ntau yam, suav nrog kev siv, ib puag ncig, thiab kev saib xyuas. Nrog kev saib xyuas thiab tu kom zoo, Tus Neeg Hais Lus Tsav Tsheb tuaj yeem nyob tau ntau xyoo.
Kuv yuav xaiv tus hais lus tsav tsheb zoo li cas rau kuv cov khoom?
+
-
Thaum xaiv Tus Neeg Hais Lus Tsav Tsheb, xav txog yam xws li daim ntawv thov, qhov loj me, tuav lub hwj chim, zaus teb, hom koob npe nrov, thiab tus nqi. Nws tseem ceeb heev uas yuav tau nyeem cov kev txheeb xyuas los ntawm lwm tus neeg siv kom tau txais lub tswv yim ntawm kev ua tau zoo thiab kev ntseeg siab ntawm tus tsav tsheb.
Dab tsi yog qhov tsawg kawg nkaus txiav txim kom muaj nuj nqis rau qhov no 40mm 8ohm 5w Neodymium Speaker Tsav Tsheb?
+
-
Feem ntau, qhov kev txiav txim yam tsawg kawg nkaus yog 3000 units. Thov hu rau peb kom muaj kev sib tham ntxiv.
